Honeysuckle dryer
We want customer to be successful. JUSUNG has been committed to research and development exploration and experience accumulation in Food, Metallurgy, Chemical industry, Textile, Agriculture and Animal husbandry since its establishment, and has provided innovative [Honeysuckle dryer] products to hundreds of customers!
Product advantage of Honeysuckle dryer

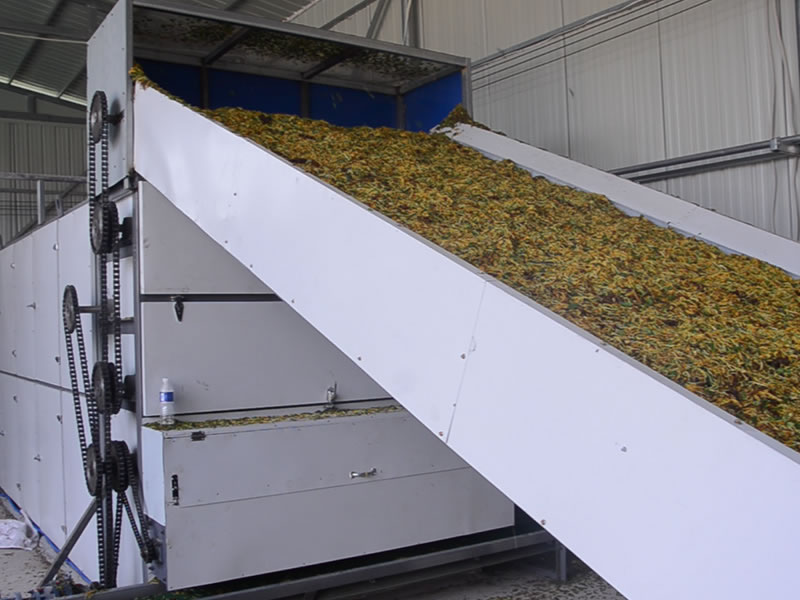

1. Large output: The dryer adopts multi-layer cyclic dynamic drying mode, which can be processed 24 hours by mass drying.
2. High quality: the dried honeysuckle has bright color, complete shape and moderate moisture, which is trusted by users.
3. Intelligent and accurate: The use of intelligent control system can ensure the temperature, time, air volume and other parameters control in the drying process.
4. cost saving: only one person can complete the whole equipment, drying time is also shortened, saving labor and time cost.
5. High heat energy conversion rate: Independently developed heat exchange device, which can be matched with various heat sources, the heat energy conversion rate is as high as 95%.
6. clean health: the whole drying process is completed in the closed box, will not be polluted by the outside world.
7 long equipment life: the overall running speed of the dryer is very slow, almost no wearing parts, in normal use, the service life is as long as ten to fifteen years or more.
Technical parameter of Honeysuckle dryer
|
Dryer model number |
Spreading area |
Handling capacity |
Total power |
Floor area (length * width * height) |
|
2×6 meters × 4 layers |
40㎡ |
3tons |
15kw |
20*5*3.5meters |
|
2 x 8 meters x 4 layers |
56㎡ |
5tons |
23kw |
22*5*3.5meters |
|
2 x 10 meters x 4 layers |
72㎡ |
7tons |
28kw |
26*5*3.5meters |
|
2 x 12 meters x 4 layers |
88㎡ |
9tons |
37kw |
28*5*3.5meters |
|
2 x 15 meters x 4 layers |
112㎡ |
12tons |
64kw |
31*5*3.5meters |
|
2 x 20 meters x 4 layers |
152㎡ |
15tons |
86kw |
36*5*3.5meters |
|
2.5 x 12 meters x 6 layers |
165㎡ |
16tons |
55kw |
30*6*3.5meters |
|
2.5 x 15 meters x 6 layers |
210㎡ |
18tons |
75kw |
33*6*3.5meters |
|
2.5 x 20 meters x 6 layers |
285㎡ |
22tons |
103kw |
38*6*3.5meters |
|
2.5 x 25 meters x 6 layers |
360㎡ |
25tons |
108kw |
43*6*3.5meters |
|
2.5 x 30 meters x 6 layers |
435㎡ |
30tons |
130kw |
48*6*3.5meters |
|
Note: Coal or biomass is used as heat source, and chili is used as raw material. |
||||
Less nonsense and more practical work! No amount of rhetoric and packaging planning can compare with doing something on the product! JUSUNG people precipitate the brand value of [Honeysuckle dryer] with accumulated little actions! It is fate to know each other, and cooperation is a share. I believe that you will find an ideal partner! Better Chinese products that are more popular around the world！
