Net belt yellow hollyhock dryer
Good products in China, serving customers from all continents! If you want to know more about the actual application of [Net belt yellow hollyhock dryer] products, please browse the following Net belt yellow hollyhock dryer product information in detail or call JUSUNG [Net belt yellow hollyhock dryer] technical consultation hotline: [+86 18539447368] to learn more experience information!
Product advantage of Net belt yellow hollyhock dryer
1. Large output: The dryer adopts multi-layer cyclic dynamic drying mode, which can be processed 24 hours by mass drying.
2. high quality: after drying yellow hollyhock bright color, complete shape, moderate moisture, by the user trust.
3. Intelligent and accurate: The use of intelligent control system can ensure the temperature, time, air volume and other parameters control in the drying process.
4. cost saving: only one person can complete the whole equipment, drying time is also shortened, saving labor and time cost.
5. High heat energy conversion rate: Independently developed heat exchange device, which can be matched with various heat sources, the heat energy conversion rate is as high as 95%.
6. clean health: the whole drying process is completed in the closed box, will not be polluted by the outside world.
7. long equipment life: the overall running speed of the dryer is very slow, almost no wearing parts, in normal use, the service life is as long as ten to fifteen years or more.
Working principle of Net belt yellow hollyhock dryer

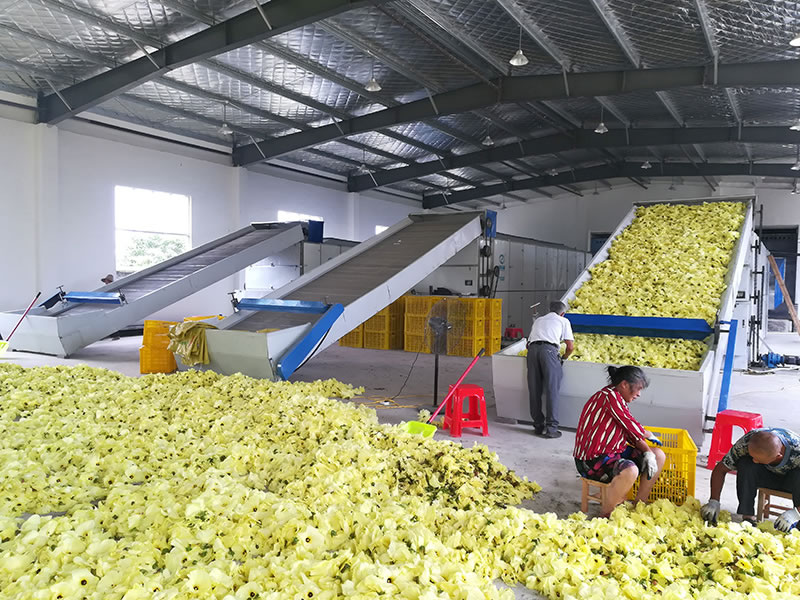

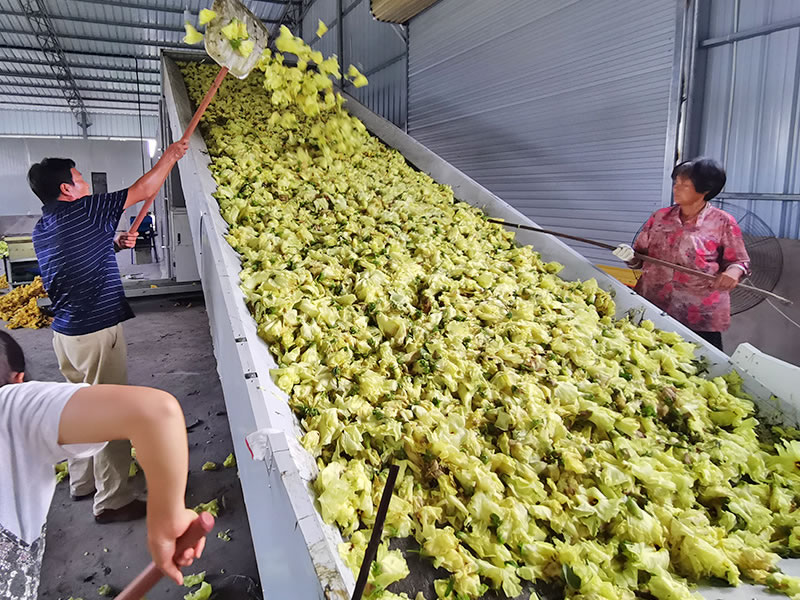

Mesh belt yellow hollyhock dryer adopts dynamic drying mode. Yellow hollyhock flowers are laid flat on stainless steel mesh belt through the feeding device and transported to the inside of the drying host. At the same time, the heat provided by the heat source system will be fed into the bottom of the drying host in the form of hot air under the action of induced draft fan, and then pass through the yellow hollyhock material layer from bottom to top to take away the water in the flowers. Achieve drying purpose.Drying and conveying at the same time, through the transmission system, can adjust the drying rate, continuous feeding, continuous drying treatment, continuous discharge, fully automatic drying of large quantities of yellow hollyhock.
Technical parameter of Net belt yellow hollyhock dryer
|
Dryer model number |
Spreading area |
Handling capacity |
Total power |
Floor area (length * width * height) |
|
2 x 6 meters x 4 layers |
40㎡ |
3tons |
15kw |
20*5*3.5meters |
|
2 x 8 meters x 4 layers |
56㎡ |
5tons |
23kw |
22*5*3.5meters |
|
2 x 10 meters x 4 layers |
72㎡ |
7tons |
28kw |
26*5*3.5meters |
|
2 x 12 meters x 4 layers |
88㎡ |
9tons |
37kw |
28*5*3.5meters |
|
2 x 15 meters x 4 layers |
112㎡ |
12tons |
64kw |
31*5*3.5meters |
|
2 x 20 meters x 4 layers |
152㎡ |
15tons |
86kw |
36*5*3.5meters |
|
2.5 x 12 meters x 6 layers |
165㎡ |
16tons |
55kw |
30*6*3.5meters |
|
2.5 x 15 meters x 6 layers |
210㎡ |
18tons |
75kw |
33*6*3.5meters |
|
2.5 x 20 meters x 6 layers |
285㎡ |
22tons |
103kw |
38*6*3.5meters |
|
2.5 x 25 meters x 6 layers |
360㎡ |
25tons |
108kw |
43*6*3.5meters |
|
2.5 x 30 meters x 6 layers |
435㎡ |
30tons |
130kw |
48*6*3.5meters |
|
Note: Coal or biomass is used as heat source, and chili is used as raw material. |
||||
