Radish dryer
Focus on the quality of details and create innovative products! JUSUNG has been committed to technology research and development and experience accumulation in Food, Metallurgy, Chemical industry, Textile, Agriculture and Animal husbandry since its establishment, and has provided stable performance [Radish dryer] products to hundreds of customers!
Product advantage of Radish dryer
1. Large output: The dryer adopts multi-layer cyclic dynamic drying mode, which can be processed 24 hours by mass drying.
2. High quality: the shape of the dried radish is complete and the moisture is moderate, which is trusted by users.
3. Intelligent and accurate: The use of intelligent control system can ensure the temperature, time, air volume and other parameters control in the drying process.
4. cost saving: only one person can complete the whole equipment, drying time is also shortened, saving labor and time cost.
5. High heat energy conversion rate: Independently developed heat exchange device, which can be matched with various heat sources, the heat energy conversion rate is as high as 95%.
6. clean health: the whole drying process is completed in the closed box, will not be polluted by the outside world.
7. long equipment life: the overall running speed of the dryer is very slow, almost no wearing parts, in normal use, the service life is as long as ten to fifteen years or more.
Working principle of Radish dryer
1. The heat source provides heat, and the cold air is introduced by the induced draft fan. The cold air is heated into hot air after the heat exchanger of the heat source part, which is sent into the dryer to air dry the material.

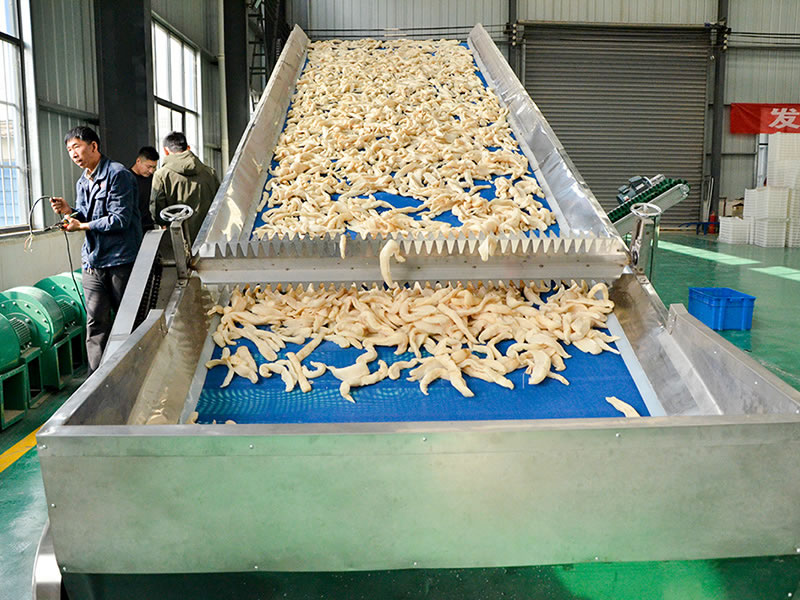

2、The material is spread to the net belt by the homogenizing mechanism on the conveyor belt, and it runs in the shape of "S" in the dryer. The hot air generated by the induced draft fan is evenly dispersed in the dryer. Because the lower pressure is greater than the upper pressure, the hot air moves up naturally and passes through each layer of mesh belt, making the material fully contact with the hot air to achieve the purpose of drying.
Technical parameter of Radish dryer
|
Dryer model number |
Spreading area |
Handling capacity |
Total power |
Floor area (length * width * height) |
|
2 x 6 meters x 4 layers |
40㎡ |
3tons |
15kw |
20*5*3.5meters |
|
2 x 8 meters x 4 layers |
56㎡ |
5tons |
23kw |
22*5*3.5meters |
|
2 x 10 meters x 4 layers |
72㎡ |
7tons |
28kw |
26*5*3.5meters |
|
2 x 12 meters x 4 layers |
88㎡ |
9tons |
37kw |
28*5*3.5meters |
|
2 x 15 meters x 4 layers |
112㎡ |
12tons |
64kw |
31*5*3.5meters |
|
2 x 20 meters x 4 layers |
152㎡ |
15tons |
86kw |
36*5*3.5meters |
|
2.5 x 12 meters x 6 layers |
165㎡ |
16tons |
55kw |
30*6*3.5meters |
|
2.5 x 15 meters x 6 layers |
210㎡ |
18tons |
75kw |
33*6*3.5meters |
|
2.5 x 20 meters x 6 layers |
285㎡ |
22tons |
103kw |
38*6*3.5meters |
|
2.5 x 25 meters x 6 layers |
360㎡ |
25tons |
108kw |
43*6*3.5meters |
|
2.5 x 30 meters x 6 layers |
435㎡ |
30tons |
130kw |
48*6*3.5meters |
|
Note: Coal or biomass is used as heat source, and chili is used as raw material. |
||||
