Tangerine peel dryer
Cultivate a strong international operation team！ If you want to know more about the application of [Tangerine peel dryer] product new technology in practice, please call JUSUNG [Tangerine peel dryer] technical consultation for more practical information!
The advantages of Tangerine peel dryer
1.more understanding early decision, product knowledge key points: large output: the dryer is a multi-layer cycle dynamic drying mode, can be 24 hours mass drying processing.
2.High quality: dried tangerine peel has complete shape and moderate moisture, which is trusted by users.
3.make decisions with knowledge, users should understand this: intelligent and accurate: the use of intelligent control system, can ensure the temperature, time, air volume and other parameters control in the drying process.
4.cost saving: only one person can complete the whole equipment, drying time is also shortened, saving labor and time cost.
5.High heat energy conversion rate: Independently developed heat exchange device, which can be matched with various heat sources, the heat energy conversion rate is as high as 95%.
6.clean health: the whole drying process is completed in the closed box, will not be polluted by the outside world.
7.long equipment life: remind users to understand，the overall running speed of the dryer is very slow, almost no wearing parts, in normal use, the service life is as long as ten to fifteen years or more.
Working principle of tangerine peel dryer
1.The heat source provides heat, and the cold air is introduced by the induced draft fan. The cold air is heated into hot air after the heat exchanger of the heat source part, which is sent into the dryer to air dry the material.

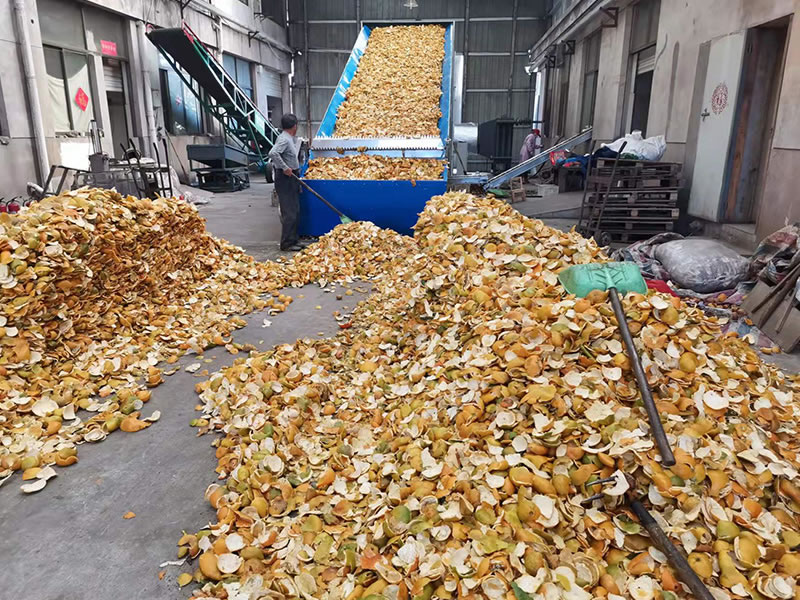

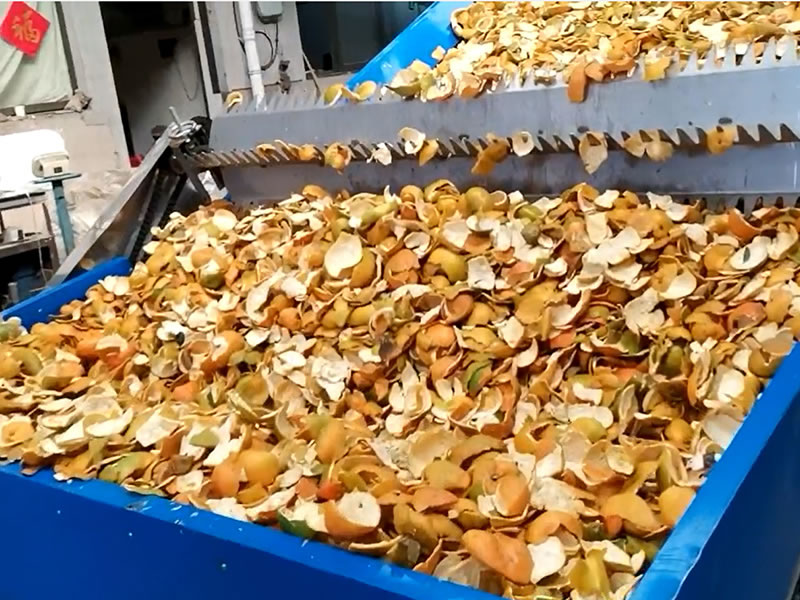

2.with knowledge to make decisions, {enterprise full name 1} remind the industry friends to understand this: the material from the conveyor belt on the material leveling mechanism to the net belt, in the dryer is "S" shape operation; The hot air generated by the induced draft fan is evenly dispersed in the dryer. Because the lower pressure is greater than the upper pressure, the hot air moves up naturally and passes through each layer of mesh belt, making the material fully contact with the hot air to achieve the purpose of drying.
Technical parameter of Tangerine peel dryer
|
Dryer model number |
Spreading area |
Handling capacity |
Total power |
Floor area (length * width * height) |
|
2×6 meters × 4 layers |
40㎡ |
3 tons |
15kw |
20*5*3.5 meters |
|
2 x 8 meters x 4 layers |
56㎡ |
5 tons |
23kw |
22*5*3.5 meters |
|
2 x 10 meters x 4 layers |
72㎡ |
7 tons |
28kw |
26*5*3.5 meters |
|
2 x 12 meters x 4 layers |
88㎡ |
9 tons |
37kw |
28*5*3.5 meters |
|
2 x 15 meters x 4 layers |
112㎡ |
12 tons |
64kw |
31*5*3.5 meters |
|
2 x 20 meters x 4 layers |
152㎡ |
15 tons |
86kw |
36*5*3.5 meters |
|
2.5 x 12 meters x 6 layers |
165㎡ |
16 tons |
55kw |
30*6*3.5 meters |
|
2.5 x 15 meters x 6 layers |
210㎡ |
18 tons |
75kw |
33*6*3.5 meters |
|
2.5 x 20 meters x 6 layers |
285㎡ |
22 tons |
103kw |
38*6*3.5 meters |
|
2.5 x 25 meters x 6 layers |
360㎡ |
25 tons |
108kw |
43*6*3.5 meters |
|
2.5 x 30 meters x 6 layers |
435㎡ |
30 tons |
130kw |
48*6*3.5 meters |
|
Note: Coal or biomass is used as heat source, and chili is used as raw material. |
||||
JUSUNG For many years Create brilliance with cohesion has adhered to the Food, Metallurgy, Chemical industry, Textile, Agriculture and Animal husbandry field and polished "craftsman" level talents on Tangerine peel dryer and other products! Set the tide and make a new start!
